Product Description
Zhongda series spraybooths are highly economical and reliable, provide spraying, accelerated drying or baking in one clean, fast operation. The Zhongda airflow system provides a scrupulously clean environment within the booth. Operators may herefore work with complete comfort and confidence, using virtually any type of today’s paint materials.
Lighting:
Lighting units each with four 36watt tubes inclined in ceiling or in wall panels for shadow free illumination. (more side wall lights optional)Model A with upper inclined lights, model B with only side wall lights
Filters:
Four kinds of filters provide a scrupulously clean environment.Finely manufactured from "Filtrair" Holland.Prefilter
--- located on supply end of air make-up unit, Main ceiling filter
--- CC600G fine filters, located inside the cabin in the ceiling, Floor filter
--- glass-fibre paint-stop filters, located under the gratings,Extract filter
--- glass-fibre paint stop filters, located inside the extract box,
Intake:
Model I: High efficiency double-intake centrifugal fan intake, 3 phase motor, belt drive, vibration free.
Model II: Backward inclined turbo fan intake, which is assembled on to motor drive shaft directly, thus providing high efficiency, energy savings and a dramatic reduction in overall operating costs.Filtering of incoming air as well as recycled air.
Extract:
Model I: High efficiency centrifugal fan extract, 3 phase motor, belt drive, vibration free.
Model II: Backward inclined turbo fan extract, which is assembled on to motor drive shaft directly, thus providing high efficiency, energy savings and a dramatic reduction in overall operating costs. Full floor filters and post-filtration before extract fan minimize the pollution of atmosphere.
Sparkproof construction.
Pre-assembled and tested.
Optional active-carbon filter.
Heating:
High efficiency stainless indirect heat exchanger can be fired by either oil, natural gas or propane gas.
85-90% of cabin air is recycled during bake cycle through pneumatic By-Pass damper, heat rise up to 80°C.
Temperature is controlled by a Variable Electronic Controller, which digitally displays both pre-set and actual temperatures.
Indirect Heat Burner:
Italian Riello Burner, heat capacity from 180000 to 280000Kcal/h.Gas burner as optional.
Control Panel:
Designed according to CE & ETL standard, all components are from world famous manufacturers, such as Siemens.
●Digital temperature readout.
●Spray and bake temperature settings.
●Bake timer.
◿quot;Dwyer" pressure gauge accurately monitor cabin pressure, motorized or manual damper make the pressure adjustable.
●Hour meter.
●Over temperature audible alarm.
●Operation indicator lights.
Payment Terms︰
L/C, T/T

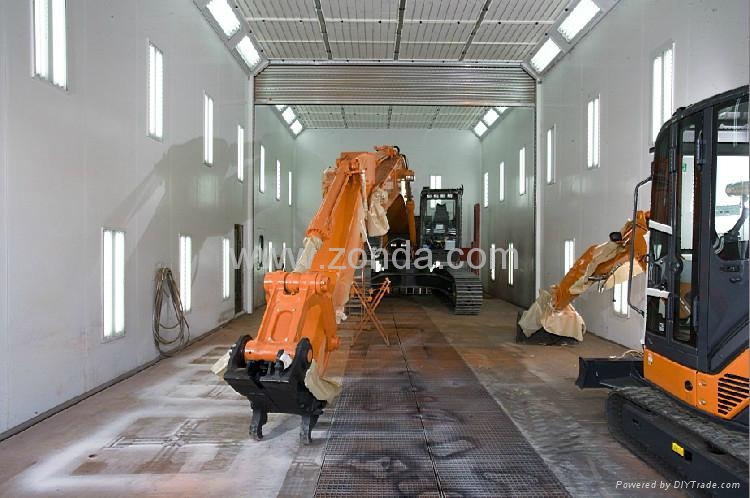

Product Image
